3D Printed Robotics

Introduction

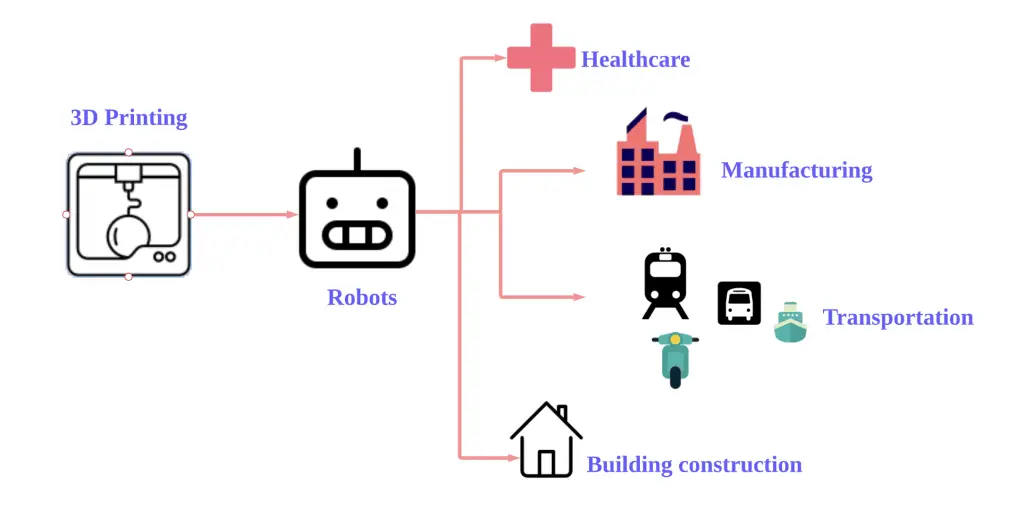

3D printed robotics is the practice of fabricating robot parts or entire machines through additive manufacturing instead of traditional cutting, molding, or casting workflows. The robotic 3D printing market is projected to grow from USD 1.9 billion in 2025 to USD 2.32 billion in 2026. That 22.1 percent annual leap signals how quickly the technology is moving from prototype labs to production lines. Engineering teams now print arms, grippers, drones, and prosthetic hands in days rather than the weeks tooling once demanded. Materials extend from inexpensive PLA filament to flight-grade titanium, while multimaterial printers can pour both rigid skeletons and soft skin in a single job. Companies like Boston Dynamics, Open Bionics, Festo, and Berkeley research labs already build robots whose limbs would be hard or impossible to machine. This guide walks through every method, every material, every working example, and every real failure mode that engineers face when they hand their CAD file to a printer. Readers will learn how 3D printed robotics works, what it costs, who is already using it, and where the field will sit by 2030.

Quick Answers on Printed Robots

What is 3D printed robotics?

3D printed robotics is the use of additive manufacturing to build robot frames, joints, grippers, drones, and full humanoid bodies layer by layer from polymers, metals, or composites instead of machining or molding parts.

Why are engineers turning to printed robotics?

Additive manufacturing shortens prototype cycles to hours, allows internal channels for wires and air, supports custom geometries for one-off jobs, and lets a small team iterate without expensive injection-mold tooling.

What can be made with printed robotics today?

Today, additive manufacturing produces robot arms, soft grippers, end-of-arm tooling, drone bodies, prosthetic hands, exoskeleton joints, humanoid leg shells, surgical micro-robots, and entire educational bots from a desktop printer.

Key Takeaways

• 3D printed robotics combines additive manufacturing with mechanical, electronic, and software design to produce robots that traditional fabrication cannot match.
• The robotic 3D printing market is growing at a 22.1 percent CAGR and is expected to pass USD 5 billion by 2030.
• Polymer methods like FDM and SLA cover prototypes, while DMLS and selective laser melting print flight-grade aluminum and titanium for industrial robot arms.
• Real adopters include Boston Dynamics, Open Bionics, Festo, Berkeley research labs, and many small businesses now printing custom end-of-arm tooling in house.

What Is 3D Printed Robotics in Modern Manufacturing

3D printed robotics is the design, fabrication, and assembly of robotic machines whose structural parts, joints, grippers, or sensors are produced by additive manufacturing in polymers, metals, ceramics, or composites instead of conventional cutting, casting, or molding processes.

How Additive Manufacturing Reshapes Robot Engineering

Additive manufacturing reshapes robot engineering by turning every CAD revision into a same-day physical part on the engineer’s bench. A team using AI in product development can iterate gripper geometry between morning and afternoon meetings, where traditional tooling required weeks for steel molds. Internal channels for wires, air lines, and lubrication become free design features because the printer simply leaves the cavities empty. Lightweighting through lattice infill drops the mass of a robot arm by 30 to 60 percent, which cuts the torque the motors must provide. Small production runs that would never justify machining now ship at hobby quantities, opening niche markets like agricultural picking arms. Engineers can also embed sensors, fasteners, or magnets mid-print, fusing electronics into the structural body in one pass.

The shift is economic, not only technical, because additive manufacturing redistributes capital from fixed tooling to flexible printers that work across product lines. Capital that once paid for a single injection mold now buys a fleet of FDM and SLA printers shared across a robotics department. Repair and replacement parts arrive faster than spares from a supplier, which reduces downtime on industrial cells. Small contract manufacturers are taking up robotics and manufacturing work that older factories cannot economically run. Service teams can scan a worn joint, model a replacement, and print it on site for field-deployed robots. The labor model shifts as well, with mechanical designers learning slicing and post-processing rather than waiting on machinists. These changes have already moved additive manufacturing robotics out of universities and into commercial supply chains.

Core 3D Printing Methods Used to Build Robots

Building on that foundation, the actual print methods used in robotics differ widely in resolution, strength, cost, and material range. Fused deposition modeling, or FDM, extrudes a thermoplastic filament through a heated nozzle and stacks it layer by layer onto the bed. FDM is the most common method in 3D printed robotics because the hardware is inexpensive, the materials are accessible, and the geometry covers most robot frames. Stereolithography, or SLA, cures a liquid resin with a laser or LCD light source and produces smooth, high-resolution parts suited to gears and small grippers. Selective laser sintering, or SLS, fuses powdered nylon or polypropylene without support material, which is ideal for snap-fit hinges and ducted vents inside a robot torso. Each of these three polymer methods covers a different region across cost, resolution, and final strength options.

Metal methods extend the technology into load-bearing robot parts that face real torque, temperature, and fatigue cycles. Direct metal laser sintering, or DMLS, and selective laser melting, or SLM, fuse fine metal powders into titanium, aluminum, and stainless steel parts that approach forged strength. Continuous carbon fiber composites layered with nylon produce printed parts that approach aluminum strength and now ship as drone fuselages and end-of-arm tooling. Binder jetting prints sand molds and metal greens that are sintered later for high-volume robot castings. Wire arc additive manufacturing, sometimes called WAAM, deposits weld metal with a robotic arm and prints meter-scale structures economically. The selection of method is mostly a trade between resolution, build volume, material strength, and cost per part.

Multimaterial machines deserve their own category because they unlock geometries no single-material printer can produce. PolyJet machines jet droplets of multiple resins simultaneously and cure them with ultraviolet light, mixing soft and hard regions inside one print. Researchers at Harvard used a rotational multimaterial 3D printing method to fabricate soft robots with hollow channels that bend predictably when pressurized. PolyJet workflows also support transparent regions, colored skin, and embedded conductive traces that simplify final assembly. Dual-extruder FDM printers achieve a cheaper version of the same idea by pairing a rigid thermoplastic with a flexible TPU. The downside of multimaterial work is slower print time and tighter calibration requirements, which raises the cost per part.

Hybrid additive subtractive systems are the newest entrants and target precision robot parts that need machined finishes on critical surfaces. These machines pair a print head with a CNC milling spindle on the same gantry, so the part is grown, then surfaced, then grown again. The result is a part with the geometric freedom of printing and the tolerance of machining on bearing seats, gear teeth, or hydraulic ports. Vendor literature confirms that hybrid manufacturing combines 3D printing with CNC machines for improved tolerances and finishes in 2026 production. Hybrid platforms remain expensive and complex to program, which limits adoption to specialized robotics shops. They will gradually move downmarket as software ecosystems mature, slicers improve, and operator training programs scale across factory floors.

Materials That Power Today’s Printed Robot Bodies

Shifting focus to materials, the choice between filaments, resins, and metal powders shapes every other engineering decision in a printed robot project. PLA is cheap and prints easily, which suits cosmetic shells and non-load-bearing brackets on hobby and classroom robots. PETG offers higher impact strength and moderate heat resistance and is the workhorse filament for structural arms and joints in desktop bots. ABS resists higher temperatures and chemical exposure but warps unless the printer has a heated chamber. Nylon and polycarbonate cover heavier-duty parts where fatigue resistance matters more than print speed. TPU and other elastomers print soft grippers, drone landing skids, and shock-absorbing wheels for service robots.

Engineering plastics with fiber reinforcement extend the strength envelope of polymer robotics into territory once reserved for metals. Carbon-fiber-reinforced nylon resists deflection well enough to replace aluminum brackets on mid-sized robot arms, with the bonus of lower mass. Glass-fiber-reinforced polypropylene offers chemical resistance suitable for laboratory automation, bench-top robotic samplers, and chassis parts in fume hoods. Continuous carbon fiber laid by specialized printers from Markforged and Anisoprint produces near-isotropic strength rivaling 6061 aluminum. UV-cured resins now include tough, high-temperature, and biocompatible grades for surgical robotics. Recycled and bio-based filaments such as PLA from corn starch reduce the carbon footprint of academic robotics programs.

Metal powders open the final tier of printed robotics, where parts run hot, take torque, or carry full robot weight. Titanium Ti-6Al-4V and aluminum AlSi10Mg lead the market for printed robot joints, arm sections, and exoskeleton frames. Stainless steel 316L and tool steel H13 support grippers, fixtures, and high-wear contact surfaces. Cobalt-chrome powders serve dental and surgical robotics where corrosion resistance is critical. Vendors like EOS, SLM Solutions, and Velo3D ship machines that produce these alloys to aerospace specifications. The cost per part is high, but the design freedom is unmatched and the lead time still beats many machined alternatives.

Designing Robots for the Print Bed

Turning to design itself, engineers who succeed with printed robotics adapt their CAD habits to the strengths and quirks of additive manufacturing. Layer orientation becomes a primary design parameter because anisotropic strength means parts are stronger along layers than across them. Internal lattice structures cut weight without sacrificing stiffness, often by 40 to 70 percent for the same envelope. Topology optimization tools generate organic shapes that follow load paths and look unlike any machined part. Snap-fits, living hinges, and captive nut pockets remove fasteners and assembly time. Designers also place support channels and fillets in places that ease post-processing and reduce sanding hours.

Design for additive manufacturing also forces tighter coordination between mechanical, electrical, and software teams across the pipeline. The work that follows depends on those handoffs and on shared print and assembly conventions, as seen in robotics engineering programs. Cable routing channels are designed during the CAD phase rather than added in assembly. Mount points for cameras, IMUs, and microcontrollers are positioned with the final wiring harness in mind. Tolerances for press-fits and bearing seats are tuned to the specific printer and material, so a part designed for an SLA machine usually needs different clearances on FDM. Print orientation is reviewed for overhangs, supports, and surface-finish-critical faces. The work upfront pays off because the printed prototype usually fits and functions on the first attempt.

Soft Robotics and the Rise of Multimaterial Printing

Building on design freedom, multimaterial printing has triggered a quiet revolution in soft robotics that traditional manufacturing could never enable. Soft robots use flexible elastomers, fluidic chambers, and gentle grippers to handle delicate objects, walk over uneven ground, or move inside the human body. Research teams now design pneumatic actuators with internal chambers that bend on command, fabricated in one print cycle without glue or assembly. Harvard engineers built a multimaterial 3D printed soft robot with embedded actuation and sensing that walked autonomously after a single print run. Princeton researchers combined liquid crystal elastomers with origami folding to make hybrid soft-rigid robots that change shape on demand. The field is moving toward robots whose body and brain emerge together from one machine.

Soft grippers are the first commercial proof point because they outperform rigid grippers on irregular, fragile, or food-grade objects. Soft Robotics Inc. and Festo ship pneumatic grippers whose silicone fingers are produced by molding and 3D printing in different combinations. Food processors use them to handle baked goods, fruit, and seafood without bruising. Logistics companies are experimenting with soft-grip end effectors for warehouse picking of mixed merchandise. Research papers in Science Advances and Nature Robotics now publish quarterly on new printable elastomers and integrated sensors. The path from a research demo to a fielded gripper is shorter than it has ever been.

Soft robotics still faces limits that conventional rigid mechanics do not. The printed elastomers fatigue under cyclic loading, with chamber walls developing micro-cracks after thousands of inflation cycles. Multimaterial adhesion between rigid skeletons and soft skins can delaminate under load, especially in temperature swings. Sensor integration is improving but lags behind rigid robots that mount commercial encoders and force sensors. Control software for continuum bodies is mathematically harder than the joint angle math used on industrial arms. The combination of new materials, new sensors, and new control will keep soft robotics close to the research frontier for several more years.

Embedded Electronics, Sensors, and 4D Printing

Beyond multimaterial elastomers, the next leap in printed robotics is embedding electronics, conductive traces, and shape-changing materials directly inside the printed body. PolyJet platforms can pause mid-print so a technician inserts a microcontroller, then continue printing the case around it. Conductive filaments and printed silver inks let designers route signal traces along curved surfaces without a separate PCB. Researchers have demonstrated a fully 3D printed soft robot with integrated fluidic circuitry that needed no electronic controller because logic flowed through pressurized channels. Capacitive sensors printed into the skin let robots feel touch without external transducers. Embedded magnets, strain gauges, and antennas become part of the structure rather than bolted on later.

4D printing extends the idea by giving printed parts the ability to change shape over time in response to heat, light, or moisture. Shape-memory polymers fold themselves into a hinged structure when warmed past a transition temperature. Bilayer prints with mismatched expansion coefficients curl into preset geometries when humidity rises. Research groups have printed self-deploying solar shades, self-fitting medical splints, and grippers that close on demand without a motor. The technology is early, but it points to robots that ship flat, then assemble themselves in the field. Aerospace and biomedical labs treat 4D printing as a strategic capability for the late 2020s.

Integrating electronics with structure also reshapes the broader AI in robotics stack because sensors deliver data the moment the part comes off the print bed. Edge AI accelerators can be mounted into recessed pockets and connected with printed traces in one pass. Real-time control loops run on hardware that is already inside the structure, cutting harness mass and signal latency. Maintenance is simpler when a single printed part bundles structure, sensor, and processor in one assembly. The pattern echoes how smartphones evolved from collections of boards into highly integrated systems. The same trajectory is now visible in additive manufacturing robotics from research labs through to early commercial robots.

Lightweight Metal Parts for Industrial Robot Arms

Shifting focus to industrial robot arms, lightweight metal printing has become one of the most economically important applications of additive manufacturing robotics. A robotic arm that swings tens of kilograms of payload at high speed wastes electricity moving its own mass. Replacing milled aluminum brackets with topology-optimized printed parts can cut moving mass by 40 percent without sacrificing stiffness. Lower inertia lets the motors accelerate the payload faster, which raises cycle time on a packing or welding line. The same lightweight gains help collaborative robots stay within the strict joint-torque limits that ISO 10218 sets for human-safe operation. Vendors like KUKA and ABB now showcase 3D printed end-of-arm tooling that outperforms the machined parts they replaced.

Metal printing also lets industrial robotics teams integrate cooling channels, sensor mounts, and conformal hydraulic ports inside a single forged-strength part. A welding gripper can carry water-cooled jaws whose channels follow the cutting edge rather than running through straight drilled holes. A pneumatic end effector can route compressed air through internal manifolds that eliminate external hoses. Inspection and quality robots embed encoder mounts inside the wrist casting so the assembly is smaller and stiffer. These integrated geometries reduce part count, simplify assembly, and improve reliability over their multi-piece predecessors. The supply chain benefit is real because every fastener removed is one less item to source and inventory.

Aerospace tier-one suppliers have moved aggressively into printed metal robotics for production end-of-arm tooling. Industry analysts forecast the robotic large-scale 3D printing market reaching USD 5.06 billion by 2030 at a 21.5 percent CAGR, with aerospace and automotive leading adoption. Tier-one automotive suppliers print jigs and fixtures that hold parts during welding, inspection, and assembly. The customization speed lets a factory adjust to a new vehicle program within weeks rather than months. Industrial maintenance teams now print spare parts for legacy robots whose original suppliers have left the market. Field engineers carry STL files on a laptop instead of trucking heavy spares around the country.

The economics of printed metal robotics still require careful planning because part-by-part cost remains high relative to bulk machined production. Powder feedstock for titanium and high-grade aluminum is expensive, and the post-processing of stress relief, heat treatment, and surface machining adds steps. Print speed is improving but multi-laser systems are still slower than CNC for simple geometries. Vendors that succeed pick parts where the design freedom or weight savings clearly justify the cost. The break-even point is usually a complex, low-volume, weight-sensitive part with internal features impossible to machine. As powder prices drop and machines speed up, the addressable share of robotics and manufacturing work will keep expanding.

Humanoid Robots and the Printed Mechanical Hand

Looking ahead from industrial arms, the humanoid form is the highest-profile showcase for printed robotics in 2026. Boston Dynamics famously revealed that Atlas uses 3D printed legs with embedded actuators and hydraulic lines in place of separately machined components. Custom servo valves printed inside the leg are smaller and lighter than the aerospace versions Boston Dynamics had been using. The Berkeley Humanoid Lite project releases an entirely open-source 3D printed humanoid platform that any university lab can replicate. Companies like Unitree, Figure, and Tesla are accelerating humanoid mass production plans that lean on additive manufacturing for low-volume body panels. Printed bones, printed hands, and printed feet share the savings that come from light, custom geometries seen across recent AI powered robotics advancements.

Mechanical hands are the hardest part of a humanoid and the part most often printed in soft and rigid materials at once. Multimaterial printing creates fingers with rigid bones, compliant joints, and gripping pads in a single build. Soft hydraulic actuators printed inside the palm provide grasping force without the bulk of conventional servos. Prosthetic hand startups apply the same techniques and ship affordable hands to amputees in weeks rather than months. Researchers integrate tactile skin, IMUs, and capacitive sensors into the printed hand so the robot feels what it holds. The combined effect is hands that approach the dexterity of biological ones in narrow tasks.

Drones and the End-of-Arm Tooling Revolution

Beyond humanoids, drones and end-of-arm tooling have absorbed an enormous share of printed robotics adoption. Drone bodies favor carbon-fiber-reinforced nylon and continuous-fiber composites that combine low mass with crash tolerance. Customized payload mounts, gimbal yokes, and sensor cages are printed in days for one-off survey missions. Inspection drones for power lines and oil rigs use printed frames to fit cameras, gas sensors, and thermal imagers in a single airframe. Search-and-rescue teams print task-specific frames the night before a deployment to match the terrain, much like the bespoke designs used by agricultural robots in field tasks. The combination of speed and customization makes additive manufacturing nearly default in the drone industry.

End-of-arm tooling is the part of an industrial robot that touches the work, and printed tooling now outperforms welded steel fixtures on most low-volume jobs. Custom grippers grip every variant of a part on a mixed-model line because they can be redesigned overnight. Vacuum cup arrays for sheet handling integrate the manifold and the mounting plate into one printed body. Pneumatic soft grippers conform to delicate fruits, bakery items, and medical samples. Inspection cameras and code readers mount inside printed shrouds that block stray light. Vendors that sell the AI behind drone delivery services routinely ship printed tooling with their robots.

Continuous carbon fiber printing has been the key enabling technology behind aerospace-grade drone parts. The technology approaches the strength of aluminum alloys while running on a desktop or industrial AM printer. Drone makers use it for arms, motor mounts, and landing gear that survive crash landings on rocky ground. End-of-arm tooling suppliers print fiber-reinforced jaws that resist scratching by metal stampings. The price of continuous fiber spools has dropped enough that hobby drone builders now run it on their personal machines. As more software support lands in mainstream slicers, fiber-reinforced printed robotics will expand far beyond aerospace.

Prosthetics, Exoskeletons, and Medical Robotics

Turning to medicine, Additive manufacturing has reshaped the prosthetics, exoskeleton, and surgical robot supply chains for both clinics and patients. Open Bionics prints its Hero Arm prosthetic in a few days using SLS nylon and ships to amputees at a fraction of the cost of conventional myoelectric arms. The same workflow underpins AI in rehabilitation and physical therapy programs that fit custom exoskeleton braces to children with cerebral palsy. Surgical robots use printed jigs, custom retractor arms, and patient-specific cutting guides built from preoperative CT scans. Veterinary clinics print bone plates and prosthetics for animals injured in accidents, much like the work behind the Ladybird farming robot project. The pattern across medicine is customization that aligns with the patient rather than the manufacturer.

Regulatory work is heavier in medicine but slowly aligning with additive manufacturing realities. The United States Food and Drug Administration has cleared several 3D printed surgical instruments and load-bearing implants over the last decade. Medical-grade printers run validated software, traceable powder lots, and post-process protocols that meet ISO 13485 quality requirements. Biocompatible resins now cover dental aligners, hearing aid shells, and short-term implants. The next frontier is bioprinted tissue scaffolds that integrate with living cells, which sit closer to medicine than to traditional robotics. Across all of these areas, the economic case for printed robotics is strongest when the device must match a unique anatomy.

Education, Hobbyists, and the Maker Robotics Wave

Shifting focus from medicine to community, Printed robotics has become the de facto entry point for students, hobbyists, and self-taught engineers worldwide. A USD 250 printer and a USD 30 microcontroller cover the hardware needed to build a working robot at home. Online repositories like Thingiverse, Printables, and Hackaday share thousands of open-source robot designs anyone can download and remix. Educational programs use kits and printed parts to teach six hours of robotics workshops in schools without dedicated machining tools. Robotics competitions like FIRST and VEX increasingly allow printed parts within rule limits, opening doors for niche projects like the AI powered robotic rat research. The maker wave is also a recruitment funnel for the professional robotics industry of the next decade.

Open-source humanoid and quadruped projects show how far hobby printed robotics has come in five years. The Berkeley Humanoid Lite gives any lab a printable bipedal platform with off-the-shelf motors and open control software. The OpenDog and Spot Micro projects let any maker print a working quadruped that walks within a weekend. The InMoov humanoid bust has been built by hundreds of contributors who improve hand designs, swap motors, and integrate vision. These projects demonstrate that meaningful robotics research no longer requires institutional budgets. The pace of community improvements often exceeds what closed industrial teams can match.

The educational impact is now visible inside policy circles that worry about workforce skills for automation-heavy economies. Workforce trainers use printed robotics to teach mechatronics in two-year community college programs. Maker fairs and robotics competitions expose teenagers to engineering they would never meet in a typical classroom. The same hardware supports computer science learners exploring whether robotics is computer science or engineering through hands-on work. International programs like FabLab expand printed-robot education across emerging economies on shared printers. The economic accessibility of printed robotics is itself a societal force, not only a technical one.

How to Design and Print a Functional Robot Component

Turning from learning communities to actual workflow, the path from idea to a printed, working robot component follows a well-defined sequence. Engineers move from a sketch through CAD, slicing, printing, and post-processing within a few hours for desktop parts. The same sequence scales to metal printers if the steps are matched to the machine. The following steps describe a standard polymer workflow used by most professional and academic robotics groups. Each step exists because skipping it usually costs more time downstream than it saves up front.

The steps below show how a maker or engineer turns a robot gripper concept into a printed, functional part on a desktop FDM printer. The same workflow scales to SLA, SLS, and metal printers with mostly software changes. Following the sequence reduces failed prints and wasted material on every job.

Step 1 – Define the function and the print envelope

Start with the function the part must perform and the print volume it must fit within the printer bed. Capture the load in newtons, the motion in degrees per second, and the mounting interface in a one-page brief that all stakeholders sign off on. Most desktop FDM printers handle up to a 250 by 250 by 200 millimeter print envelope, so verify the chosen printer can produce the part in one piece, or plan a splitline if it exceeds the bed. Confirm the desired material is in stock and compatible with the load and temperature targets. Allow 1 to 2 days of planning time for non-trivial parts. The brief shapes every later decision, from CAD modeling through slicing.

Step 2 – Model the part in CAD with print-aware features

Model the part in CAD software such as Fusion 360, SolidWorks, Onshape, or FreeCAD, with print-aware features baked in from the first sketch. Add fillets of 2 to 5 millimeters to reduce stress concentrations and avoid sharp vertical overhangs above 45 degrees. Include captive nut pockets sized for M3 or M4 hardware, snap-fits with 0.2 millimeter clearance, and cable channels where assembly requires them. Set tolerances for moving fits based on prior calibration on the same printer and material, usually 0.15 to 0.30 millimeters on each face. Export the part as STL or 3MF at a triangle count between 50,000 and 200,000 to preserve curves without bloating file size. Save a versioned source file so later edits can branch from a known working revision.

Step 3 – Slice the model with the right parameters

Open the file in slicing software such as PrusaSlicer, Cura, or Bambu Studio, and configure parameters that match the printer and the material. Set layer height between 0.1 and 0.3 millimeters depending on the strength and surface needs of the part. Set infill density between 20 and 80 percent for structural parts and choose a strong infill pattern like gyroid or grid. Configure support placement for overhangs above 45 degrees and bridges over 5 millimeters to avoid surface scarring on functional faces. Set print speed between 60 and 100 millimeters per second for general parts and slower for fine features. Preview the toolpath in 3D and confirm the print time is acceptable for the deadline.

Step 4 – Print, monitor, and post-process the part

Send the G-code to the printer, verify the first layer adheres correctly within the first 5 minutes of the print, and monitor the build through a camera or remote dashboard. Detect failed first layers or detached parts early to avoid wasting material on a doomed print that can otherwise run for 8 to 24 hours. After the print, remove supports with pliers or a flush cutter and lightly sand visible surfaces with 220 grit paper. Drill out holes that must hit tight tolerances of 0.1 millimeters or better, since printers leave them slightly small. Heat treat or anneal where the chosen material benefits from improved strength, typically at 60 to 100 degrees Celsius for an hour.

Step 5 – Validate the part on the robot and iterate

Install the part on the robot, run the intended motion at 25 percent of the rated speed, and inspect for fit, friction, and any rubbing. Measure stress, deflection, or vibration if the part is structural and adjust infill or wall thickness in the next print. Capture any failure modes for the design review and log the slicer settings used, including layer height in millimeters. Iterate on the CAD file based on observed performance and reprint until the part meets the brief within 2 or 3 build cycles. Document the final printing recipe with full settings so a teammate can reproduce the part in a year without guessing.

Implementation in Factory Floors and Robotic Cells

Shifting from a single workflow to factory-scale implementation, plant operators now run additive manufacturing inside live production lines rather than only research labs. A robot cell on a packaging line uses printed end-of-arm tooling redesigned weekly to handle new SKUs. The pattern mirrors how AI robots enter the real world in modern logistics workflows. Automotive welding cells run printed jigs that are scrapped after a model year and replaced with fresh printed parts. Spare parts for older robots sit in a digital library rather than on a stocked shelf, which lowers inventory costs. types of collaborative robots use lighter printed tooling that keeps joint torques within safety limits. The combined effect is leaner inventories, faster changeovers, and faster reactions to product changes.

Implementation also requires investment in process discipline because printed parts behave differently from machined ones across shifts and operators. Quality teams add additive-specific inspection like CT scanning for embedded defects in critical parts. Storage humidity matters because nylon and PETG absorb moisture and print poorly when wet. Calibration of printers across a fleet must be tight so part dimensions match shift to shift. Operators need training in slicing, post-processing, and inspection that traditional machine operators did not need. Plants that invest in this discipline get the speed and customization benefits of printed robotics reliably.

The economic benefit shows up in changeover time, scrap, and engineering responsiveness rather than only in unit cost. A factory that previously waited four weeks for new tooling now ships fresh fixtures in three days from internal printers. Engineering teams can prototype six iterations of a gripper instead of one before committing the final design. Maintenance crews swap broken tooling in minutes rather than scheduling visits from external fabricators. The overall throughput gain on a busy line often pays for the printer fleet within a year. Plant managers who track those numbers find printed robotics a defensible operational upgrade, not a science-fair toy.

Risks, Failure Modes, and Quality Assurance

Looking back at the technical landscape, the risks and failure modes of printed robotics deserve as much attention as the wins. Layer adhesion is the dominant failure mode because anisotropic strength means parts crack along layer lines under load. Print orientation, infill density, and layer height all shape that strength, and a poor choice can ruin a structural part. Surface finish from FDM and binder jetting is rougher than machined surfaces and can introduce stress risers. Researchers warn that mobile robotic 3D printing faces challenges in path planning and base stability that affect part accuracy. Engineers must design parts around these realities rather than against them.

Material property variability is the second major risk and is far worse with printed parts than with conventionally manufactured ones. Print speed, ambient humidity, nozzle wear, and powder reuse all shift the final mechanical properties. Two parts printed on the same machine on the same day can vary by 10 to 20 percent in tensile strength. Quality teams cope with statistical process control, witness coupons, and destructive testing on a sample of every batch. Researchers also report that the resolution of FDM and DIW prints is typically 100 micrometers to 1 millimeter, which limits the smallest workable feature. These limits push critical parts toward SLA, SLS, or metal methods even when FDM seems faster.

Long-term reliability of printed robot parts is still being measured because the technology is younger than industrial robotics itself. UV exposure degrades many resins over years, which threatens outdoor robots and drones. Polymer creep under sustained load can deform joints that worked fine on day one. Thermal cycling cracks multimaterial interfaces between rigid and flexible regions. Field robotics teams report higher failure rates of printed parts in dusty or chemically harsh environments. These data points underscore why fielded production robots still mix printed and conventional parts rather than relying entirely on additive components.

Quality assurance for printed robotics is maturing rapidly thanks to better in-process monitoring and machine learning. Many industrial printers now include cameras, laser sensors, or melt-pool monitoring that flags defects mid-build. Vendors like Sigma Labs and Velo3D ship inline analytics that score every part as it prints. Post-build inspection through CT scanning catches internal voids that visual inspection misses. Statistical process control of powder lots, environmental conditions, and machine calibration keeps printed parts inside spec. The combined toolset is starting to give printed robot parts the kind of audit trail that aerospace and medical buyers demand.

Ethics, Regulation, and Intellectual Property Concerns

Beyond technical risks, Printed robotics raises legal, ethical, and intellectual property questions that are still being argued in policy forums. STL and 3MF files travel the internet faster than physical parts, which makes infringement easier and detection harder. Medical and aerospace regulators must adapt approval pathways to parts whose specifications can be edited and re-printed on any compatible machine. Some jurisdictions explore liability frameworks for printed weapons, illegal drone modifications, and unsafe consumer prosthetics. The same democratization that empowers makers can equip bad actors with custom robotics. Policy and engineering must move in parallel for the field to mature responsibly.

Intellectual property in printed robotics now operates in a hybrid world of digital files, hardware patents, and open-source licenses. Companies protect proprietary parts with watermarked files, parametric encryption, and licensing servers built into slicers. Open-source projects like the Berkeley Humanoid Lite intentionally release their files under permissive licenses to build community. Universities license printed designs to startups in increasingly common technology transfer agreements. Standards bodies are drafting digital part identification specifications so a printed part can carry a provenance record. The settled IP landscape will probably look like software more than like classic mechanical engineering.

The Future of 3D Printed Robotics Through 2030

Looking ahead to 2030, several forces will shape the next chapter of printed robotics together. Generative AI design tools turn natural-language requirements into print-ready CAD geometry within minutes. Hybrid additive subtractive machines combine print, mill, and inspect operations on one platform. Multi-laser metal printers and continuous fiber composites cut cost per kilogram while raising part strength. Software ecosystems converge around standard slicer-to-controller interfaces that make multi-material work easier. The cumulative effect is a manufacturing model where most low-volume robot parts are printed by default.

Three application areas will probably define the rest of the decade for printed robotics. Humanoid robotics will lean on additive manufacturing for the unique geometries of fingers, faces, and torsos at low volume. Medical robotics will keep growing as patient-specific implants, prosthetics, and surgical tooling become reimbursable in more health systems. Space and defense robotics will adopt in-orbit and forward-deployed additive manufacturing for repair and rapid prototyping. Underlying all of these, smaller economies will use printed robots to leapfrog older industrial bases. Analysts now project the broader 3D printing market will pass USD 168 billion by 2033 at a 23.9 percent CAGR, with robotics one of the fastest-growing slices.

The most important shift is cultural rather than technological because engineering teams will design with print first rather than fall back on machining. Mechanical engineering curricula already teach additive design alongside subtractive machining. Procurement teams build digital part libraries instead of physical stockrooms for spare robot parts. Service businesses ship printed parts overnight from regional print farms rather than central warehouses. The boundary between hardware and software blurs because a robot design is essentially a digital file that becomes a physical thing. By 2030, additive manufacturing robotics will not be a niche specialty but a default option in the robotics engineer’s toolbox.

Key Insights From the Numbers Behind Printed Robots

• Analysts at Research and Markets project the robotic large-scale 3D printing market will reach USD 5.06 billion by 2030. That trajectory of 21.5 percent CAGR signals mainstream adoption across robotics manufacturers in many regions today.
• Research Intelo forecasts that the global robotic additive manufacturing market will jump from USD 2.94 billion in 2024 to USD 21.06 billion by 2033. The 21.8 percent CAGR outpaces broader factory automation growth across nearly every region of the world.
• Markets and Markets sees the narrower 3D printing robot category reach USD 3.14 billion by 2030 from USD 2.00 billion in 2025. The 9.5 percent CAGR shows adoption settling into steadier ground after a decade of fast experimental growth.
• Grand View Research estimates the additive manufacturing market will reach USD 168.93 billion by 2033 from USD 30.55 billion in 2025. That 23.9 percent CAGR projection pulls robotic part adoption along on the same broad growth curve worldwide.
• Harvard SEAS researchers built a soft quadruped robot using rotational multimaterial 3D printing methods in a single PolyJet build run. The robot, documented in Science Advances research on integrated 3D printed soft robots, walked autonomously off the print bed within minutes of build completion.
• Met3DP reports that 2026 robotics manufacturers use metal printing to drop component mass by up to 40 percent on industrial robot arms. The drop lowers required motor torque and raises payload speed on packing and welding lines.
• NIH-archived soft robotics reviews note that FDM and DIW print resolution sits at 100 micrometers to 1 millimeter. The current limit restricts how small printed actuators and integrated sensors can ultimately go in soft robots.
• 3DPrint.com reported that Boston Dynamics printed Atlas legs with embedded hydraulics and custom servo valves. Those valves are smaller and lighter than the aerospace versions, showing how flagship humanoids depend on additive manufacturing.

Across these data points, a coherent picture emerges of printed robotics moving from research curiosity to manufactured product. The market is doubling roughly every three to four years across multiple analyst forecasts that span both narrow and broad scopes. Real research labs and real companies already ship printed humanoids, drones, prosthetics, and industrial arms that work in the field. Material progress in continuous carbon fiber, multimaterial elastomers, and biocompatible resins keeps unlocking new product categories. The remaining limits sit on print resolution, anisotropic strength, and certification rather than on cost or interest. The next decade will probably look like the smartphone era, where one technical shift cascades across consumer, industrial, and medical robotics in parallel.

Method	Material range	Typical resolution	Part strength	Cost per part	Best fit in robotics	Main limitation
FDM	PLA, PETG, ABS, nylon, TPU, fiber-reinforced	100 to 300 micrometers	Moderate, anisotropic	Low	Prototypes, classroom bots, hobby drones	Surface finish, layer adhesion
SLA	UV resins, tough resins, biocompatible	25 to 100 micrometers	Moderate, brittle	Low to moderate	Small grippers, gears, surgical tools	UV degradation, post-cure
SLS	Nylon, polypropylene, glass-filled	80 to 150 micrometers	Good, near-isotropic	Moderate	Snap-fit hinges, drone bodies, prosthetics	Powder handling, slow cooling
DMLS / SLM	Titanium, aluminum, stainless, cobalt-chrome	30 to 80 micrometers	High, near-forged	High	Industrial robot arms, end-of-arm tooling	Powder cost, post-process
PolyJet	Multimaterial resins, soft to rigid	16 to 32 micrometers	Variable by region	High	Soft robots, multimaterial hands	Cost, slow print
WAAM	Steel, aluminum, nickel wire	1 to 5 millimeters	High, weld-grade	Low per kilogram	Large frames, robot bases, ship parts	Surface finish, distortion
Hybrid additive subtractive	Metal powders + CNC finishing	10 to 50 micrometers	High, precision surfaces	Very high	Precision robot joints, bearing seats	Programming complexity

Real Examples of Companies and Labs Putting Printed Robots to Work

Boston Dynamics’ Printed Atlas Legs

Boston Dynamics rebuilt the legs of its Atlas humanoid robot with 3D printing, embedding actuators and hydraulic lines directly into the printed structure. The team developed custom servo valves smaller and lighter than aerospace equivalents that fit inside the printed leg housings. The redesigned Atlas walked through snowy woods, lifted boxes, and recovered after being shoved during public demonstrations. The engineering community publicly reviewed the work, as reported by 3DPrint.com on the Atlas 3D printing project. Boston Dynamics founder Marc Raibert presented the breakthrough at the FAB11 MIT conference, where he explained that integrated printed parts allowed shorter, lighter, more agile legs. The main limitation was the multi-year iteration time required to qualify the printed hydraulic parts against legacy aerospace components for reliability. The result is a flagship humanoid whose mobility depends on additive manufacturing rather than treating it as a secondary process.

Harvard’s Self-Walking Printed Soft Robot

Harvard’s School of Engineering and Applied Sciences pioneered an integrated 3D printing method for building soft robots that walk on their own immediately after the print finishes. The team used multimaterial PolyJet machines to deposit soft actuators, sensors, flexible circuits, signal channels, processing components, and power lines in one continuous job. A 90-millimeter quadruped soft robot walked out of the printer after a single build run, as documented in Science Advances research on multimaterial 3D printed soft robots. The robot covered roughly six body lengths per minute on flat ground, a measurable benchmark the team published. The main limitation is print time and cost since a multimaterial job for one functional robot still takes hours and uses expensive resins. The approach still proves that single-job fabrication of full small-scale robots is technically achievable today.

Open Bionics’ Hero Arm Prosthetic

Open Bionics built and deployed the Hero Arm, a myoelectric prosthetic limb produced almost entirely with SLS nylon and assembled by clinicians in a few days. The company scans each amputee, generates a custom socket in CAD, then prints the limb in batches. The finished arm ships at roughly a third of the cost of traditional myoelectric prosthetics. Hero Arms have been delivered to thousands of users worldwide since launch, with several thousand active fittings by 2025 according to Open Bionics’ Hero Arm product page. The arm includes embedded electronics, motorized fingers, and replaceable covers that let children change the look of their prosthetic. The main limitation is grip force, which lags behind heavier industrial prosthetics, and the printed materials still wear faster than machined metal alternatives. The product proves that 3D printing can bring custom robotics to a clinical market traditionally dominated by slow, expensive production.

Deeper Case Studies of Printed Robots in the Field

Case Study: Berkeley Humanoid Lite Open-Source Platform

The University of California Berkeley released the Berkeley Humanoid Lite, an open-source humanoid robot designed to be affordable, customizable, and reproducible by any university research lab. The problem the team set out to solve was that capable bipedal robots from commercial vendors cost more than USD 100,000 and locked their code, which slowed academic research. The Berkeley solution was a fully 3D printed humanoid platform whose mechanical parts can be printed on standard FDM and SLS machines, paired with off-the-shelf motors and open control software. The team published full CAD files, bill of materials, and ROS-compatible control code on a public Git repository so any lab could rebuild the robot. The design also targeted a sub-USD 5000 total build budget by leaning on commodity stepper motors and inexpensive single-board computers.

The measurable impact is significant: labs worldwide have built copies of the platform within weeks. Total spend stays under USD 5,000 in materials and motors, as detailed in the Berkeley Humanoid Lite getting started documentation. The platform handles walking, balancing, and basic manipulation tasks suitable for teaching, demonstration, and early control research. The main limitation is durability since the printed parts are not rated for industrial use and replacements are expected after extended testing. The platform shows that 3D printing now collapses the cost barrier to advanced robotics research and demonstrates a viable model for openly distributed humanoid hardware. Several robotics doctoral programs have already adopted the platform as a standard test rig for new locomotion algorithms.

Case Study: Princeton’s Liquid Crystal Elastomer Soft Robots

Princeton University researchers tackled the problem that purely soft robots are hard to control and purely rigid robots cannot safely interact with delicate objects or human anatomy. The team combined a 3D printed liquid crystal elastomer with flexible electronics and origami-like folding to build hybrid soft-rigid robots that can change shape on demand. The solution involved printing programmable liquid crystal elastomers that contract along predetermined axes when heated, paired with rigid printed scaffolds that constrain the motion into useful kinematic patterns. The resulting robots fold themselves from flat sheets into walking, gripping, or sensing shapes powered only by thermal stimulation. The Princeton group also benchmarked the platform across multiple actuator designs and shared the recipes with the broader soft robotics community.

The measurable impact includes printing and deploying a working robot from a flat sheet within minutes. The result is reported in 3DPrint.com’s May 2026 coverage of Princeton’s soft-rigid hybrid robotics work. Force outputs of the elastomer actuators reach several Newtons per gram, competitive with hydraulic systems on a mass-normalized basis. The main limitation is the slow response time of thermally driven shape change, which can take seconds rather than milliseconds, and the limited cycle life of current elastomer materials. The approach still opens a path toward robots that ship as flat printed sheets and self-deploy in remote or constrained environments. The United States Air Force, NASA, and several medical device firms have shown interest in the technology for future applications.

Case Study: MX3D’s Robotic Arc-Welded Steel Structures

Dutch firm MX3D faced a clear problem: conventional metal 3D printers cannot economically produce parts larger than roughly one cubic meter. The limit cut off big industrial robot frames, construction parts, and bridges from additive manufacturing. The solution was to mount welding heads on industrial six-axis robot arms and let the robots themselves print large metal structures by depositing welded layers along programmed paths. MX3D printed the world’s first 3D printed stainless steel bridge for installation over a canal in Amsterdam, demonstrating the structural capability of the wire arc additive manufacturing process. The same platform is now used to print robotic arms, hydraulic manifolds, and aerospace tooling at meter scale. The MX3D team continues to expand the technique into custom turbine housings, hydraulic components, and shipyard repair work for several European clients.

The measurable impact is a print speed of roughly two kilograms per hour with weld-grade strength. That speed represents a 4x increase over typical powder-bed metal printers in tests, as documented on MX3D’s robotic 3D printing platform page. The Amsterdam bridge has carried public foot traffic since 2021 and is instrumented with sensors that monitor stress and fatigue continuously. The main limitation is surface finish, which is rough enough to require either machining of contact surfaces or acceptance of an industrial look for non-critical faces. Distortion from welding heat must also be carefully managed across long prints. The case still shows that pairing industrial robots with welding heads can extend printed robotics into civil engineering and very large mechanical structures.

Frequently Asked Questions About 3D Printed Robotics
